| 新旧程度：9成新 | 产品数量：6 | 品牌：目黑 |
| 型号：MSG2050 | 类型：电子测量 | 设备所在地：深圳市 |
| 设备生产产地：日本 |

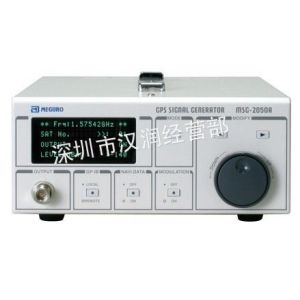

现货销售GPS信号发生器 MSG2050信号发生器/GPS信号源
Frequency Characteristics | |
Frequency | 1.57542GHz |
Indication | VFD display |
Accuracy | 5×10-7 |
Output Characteristics | |
Output range | -80dBm to -140dBm in 1dB step |
Indication | VFD display |
Accuracy | ±1.0 dB for -80dBm to -140dBm |
Output impedance | 50Ω, VSWR less than 1.2 |
Spurious output | Less then -40dB at second harmonic |
Setting | Can be set with shuttle knob, GP-IB, RS-232C |
Modulation | |
Modulation method | BPSK direct sequence spread spectrum modulation |
Indication | VFD display |
Modulation code | 37 C/A codes |
Channel | SV1 to SV37 |
Modulation frequency | 1.023MHz clock |
Data modulation | C/A code synchronized divider, 50bps BPSK |
NAVI data | 50bps test pattern |
Setting | Can be set with shuttle knob, GP-IB, RS-232C |
Z count | Automatic increment function is equipped so as to synchronize with real time clock. |
Interface Function | |
Parallel interface | GP-IB (Complying with IEEE standard 488-1975) |
Serial interface | RS-232C |
General Data | |
Operating temperature range | +10?C to +40?C |
Power requirement | AC90V to 240V, 50/60Hz |
Dimensions | Approx. 240(W) × 100(H) × 350(D)mm |
Weight | Approx. 3.7kg |
